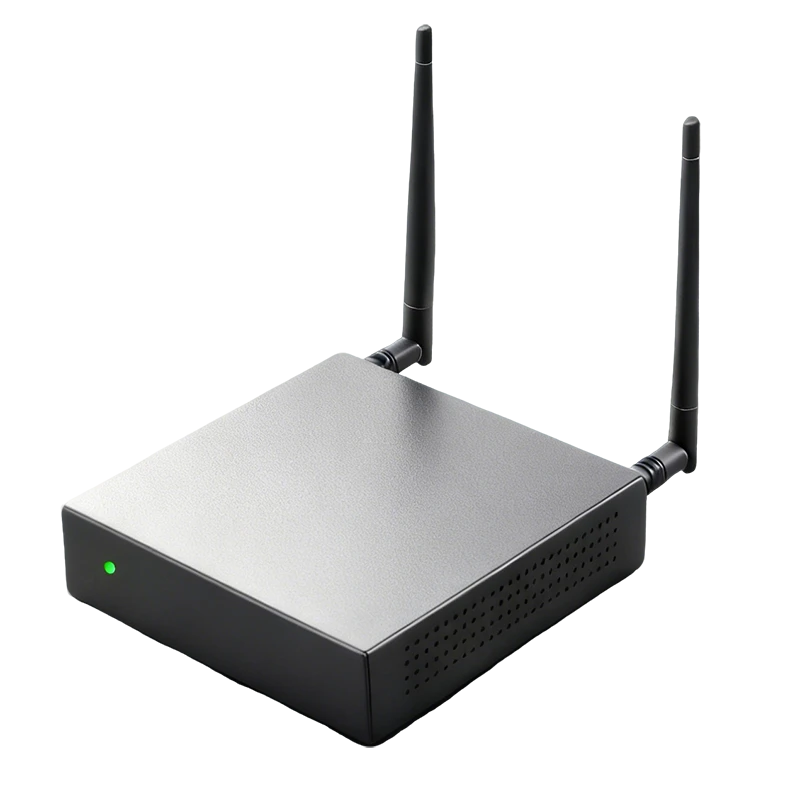

DataMax DM16N RK3588 Edge-Computing AV-over-IP Ecosystem Hardware Engine for Enterprise Meeting Solution

Rockchip RK3588 (8nm process)
Integrated 6 TOPS NPU (INT8)
8GB LPDDR4（16GB optional)
32GB eMMC, support for NVMe SSD (data logging)
1 x HDMI IN, 1 x HDMI OUT, 1 x Type-C(Support DP1.4 8K@30fs)

Datasheet

Basic Info.
Model	DM16N
CPU	RK3588,Quad-core ARM Cortex-A76 MP Core processor and quad-core ARM Cortex-A55 MPCore
GPU	ARM Mali-G610 MP4,High performance OpenGLES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan1.2 etc.
NPU(AI Accelerator)	6 TOPs
DDR	LPDDR4X 8GB(2GB/3GB/4GB optional)
Flash	EMMC 64GB(8GB/16GB/32GB/64GB)
WiFi&Bluetooth	AP6275PR3(Dual band 2.4G&5G WiFi6 with Bluetooth 5.0)
Dimension	135 x 135 x 32mm
I/O
DC	12V/2A
Type-C	x 1, support DP1.4
USB host	USB 2.0 x 2
HDMI	input x 1, output x1
RJ45	1000M LAN support PoE
Software
OS	AOSP Android14 / Debian 10.6
Menu Language	Multi-language
Media
Video decoder	– H.265/VP9 by 8K@60fps – H.264 by 8K@30fps – AV1 by 4K@60fps
Video Encoder	– Real-time H.265/H.264 video encoding by 8K@30fps – Multi-channel encoder in parallel for less resolution
Audio	I2S0/I2S1 with 8 channels/I2S2/I2S3 with 2 channels/SPDIF0/SPDIF1/PDM0/PDM1/Digital Audio Codec/VAD(Voice Activity Detection)
Picture	– JPEG Encoder – Baseline (DCT sequential) – Encoder size is from 96×96 to 8192×8192(67Mpixels) – Up to 90 million pixels per second – Embedded four encoder units – JPEG Decoder – Decoder size is from 48×48 to 65536×65536 – Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 – Support up to 1080P@280fps, and 560 million pixels per second – Support MJPEG – Embedded four encoder units

Basic Info.
Model	DM16N
CPU	RK3588,Quad-core ARM Cortex-A76 MP Core processor and quad-core ARM Cortex-A55 MPCore
GPU	ARM Mali-G610 MP4,High performance OpenGLES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan1.2 etc.
NPU(AI Accelerator)	6 TOPs
DDR	LPDDR4X 8GB(2GB/3GB/4GB optional)
Flash	EMMC 64GB(8GB/16GB/32GB/64GB)
WiFi&Bluetooth	AP6275PR3( Dual band 2.4G&5G WiFi6 with Bluetooth 5.0)
Dimension	135 x 135 x 32mm
I/O
DC	12V/2A
Type-C	x 1, support DP1.4
USB host	USB 2.0 x 2
HDMI	input x 1, output x1
RJ45	1000M LAN support PoE
Software
OS	AOSP Android14 / Debian 10.6
Menu Language	Multi-language
Media
Video decoder	– H.265/VP9 by 8K@60fps – H.264 by 8K@30fps – AV1 by 4K@60fps
Video Encoder	– Real-time H.265/H.264 video encoding by 8K@30fps – Multi-channel encoder in parallel for less resolution
Audio	I2S0/I2S1 with 8 channels/I2S2/I2S3 with 2 channels/SPDIF0/SPDIF1/PDM0/PDM1/Digital Audio Codec/VAD(Voice Activity Detection)
Picture	– JPEG Encoder– Baseline (DCT sequential) – Encoder size is from 96×96 to 8192×8192(67Mpixels) – Up to 90 million pixels per second – Embedded four encoder units – JPEG Decoder – Decoder size is from 48×48 to 65536×65536 – Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 – Support up to 1080P@280fps, and 560 million pixels per second – Support MJPEG – Embedded four encoder units

Frequently Asked Questions

The minimum quantity is 1000pcs.
The most cost-effective MOQ is 3000pcs, because this quantity reduces the break bulk distribution cost in comparison with the Qty of 1000pcs.

Quality:
Quality is our culture, every product from us has to go through at least 9 times of inspection before being offered to you. These inspections are incoming inspection, QA inspection, assembly line online test, patrol inspection, dust removal test, aging test, FQC test, enhanced dust removal test, and Package inspection. All products are 100% tested and approved.

Warranty:
DataMax with a 1 year warranty for the whole device.
We provide 0.3%~1% spare parts for after-sales service on the client’s side.

We usually give you a quotation within 48 hours after getting your inquiry during the workday.
If you are in a hurry to inquire, please contact us by Email/Teams/WhatsApp/WeChat/Phone directly. You can find all our sales contact information on every page.

Samples order is highly welcome for quality evaluation if needed. We have stock that we can ship you immediately, it takes 7-15 days to reach you.

For the new order, it usually takes 30-35 days for production.
For the duplicated order, 15-21 days would complete the production.

For the artwork, you can customize the giftbox, logo on device or RCU, bottom sticker, carton box.
For the software, you can redefine the model number, language & timezone by default, pre-installed apps, launcher replacement(if it’s necessary)

Yes, we can. DataMax is a leading national high-tech enterprise and a 12-year ODM/OEM manufacturer in the industry of Android-based products. Our rich R&D experiences over a decade have shaped us into a great product maker with a deep understanding of the product definition and problem solver when after-sales issues occur.

We usually ship orders according to customers’ demand. If customers don’t have the shipment channels, we will use our reliable shipping agent who has been cooperating with us for over 10 years. The shipping period depends on the shipping methods. Welcome to inquire with us for more about this.

We have refund policy for every projector:
1) If the product is damaged due to external forces or human factors, we will not be responsible for refunds.
2) We guarantee 100% replacement for the extra faulty devices if the defective quantity exceeds the spare parts we provided.

If you have questions about after-sales service, please contact us anytime.

We usually accept T/T for bank transfer, 30% deposits before mass production, 70% balance payment before the order shipment.
