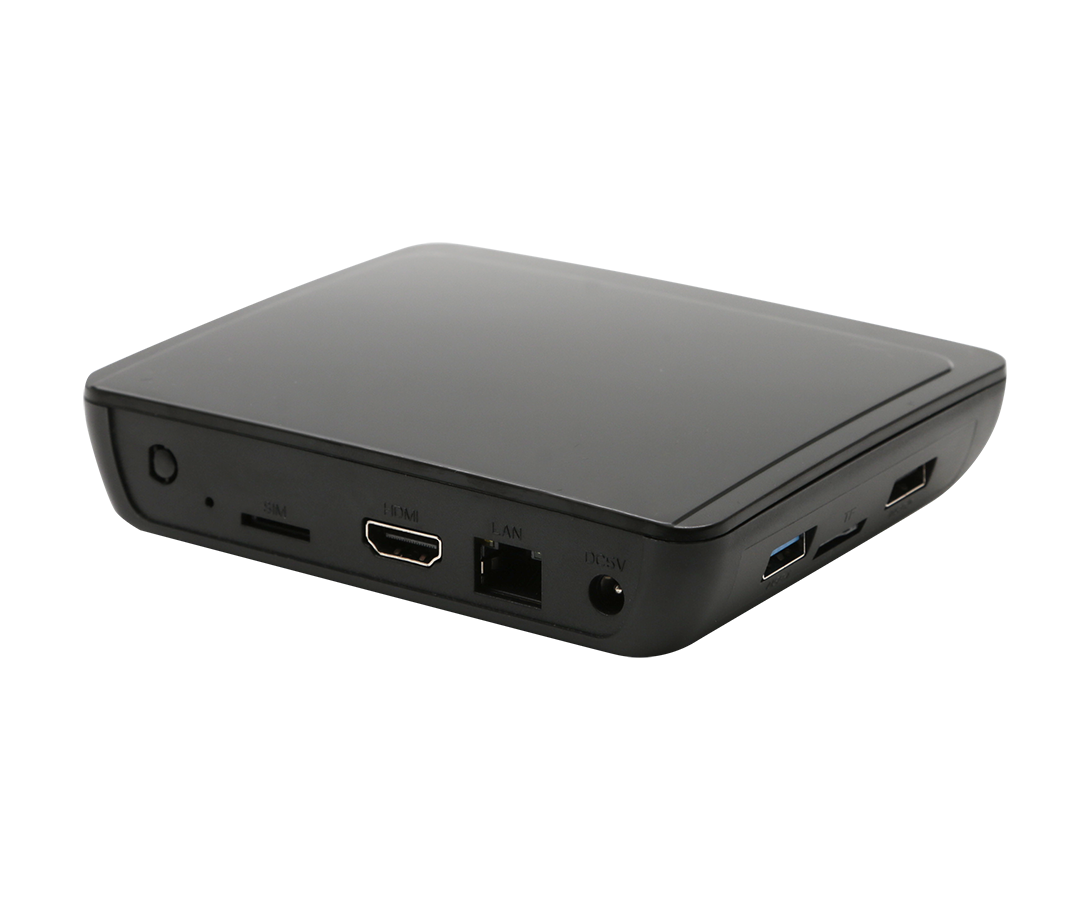

DataMax DM35R 4K TV Box with sim card slot supports 4g-lte or 5g data optional

Rockchip RK3566
ARM Mali-G31 MP2, OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0
Bluetooth 5.4
Wi-Fi 6 (2.4 & 5GHz) 2×2
H.265/H.264/VP9 4K@60fps decoding

Inquiry

Datasheet

Hardware
Model No.	DM35R
CPU	Rockchip RK3566 Quad-core Cortex-A55
GPU	Mali-G52 1-Core-2EE, Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
GPU	0.8 TOP
DDR	4GB(2GB/4GB/8GB optional)
EMMC	32GB(16GB/32GB/64GB optional)
WiFi & Bluetooth	2.4G & 5G WiFi6 with bluetooth 5.2
Ethernet	100M LAN (1000M optional)
Connection
Power Suply	DC 5V/2A
HDMI Output	1 x HDMI 2.0b
5G/4G LTE	1 x SIM card slot
Ethernet	1 x 100M LAN
USB	2 x USB 2.0
TF Card	1 x TF Card
Software
OS	AOSP Android 13
Apps Download	Apps download freely from Playstore
Voice Search	Optional
Media
Multi-media	• Support 4K 60fps H.265/H.264/VP9 decoder• Support 1080P 60fps H.265/H.264 encoder• Support 8M ISP
Packing List
Carton Size	610(L)239(W)212(H)mm, 20pcs
Carton G.W.	7.7KG
Product Size	157(L)105(W)120(H)mm
Giftbox Size	188(L)109(W)58(H)mm
Accessories	1User Manual，1Adaptor, 1HDMI cable, 1RCU

Hardware
Model No.	DM35R
CPU	Rockchip RK3566 Quad-core Cortex-A55
GPU	Mali-G52 1-Core-2EE, Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
NPU	0.8 TOP
DDR	4GB(2GB/4GB/8GB optional)
EMMC	32GB(16GB/32GB/64GB optional)
WiFi & Bluetooth	2.4G & 5G WiFi6 with bluetooth 5.2
Ethernet	100M LAN (1000M optional)
Connection
Power Suply	DC 5V/2A
HDMI Output	1 x HDMI 2.0b
5G/4G LTE	1 x SIM card slot
Ethernet	1 x 100M LAN
USB	2 x USB 2.0
TF Card	1 x TF Card
Software
OS	AOSP Android 13
Apps Download	Apps download freely from Playstore
Voice Search	Optional
Media
Multi-media	• Support 4K 60fps H.265/H.264/VP9 decoder• Support 1080P 60fps H.265/H.264 encoder• Support 8M ISP
Packing List
Carton Size	610(L)239(W)212(H)mm, 20pcs
Carton G.W.	7.7KG
Product Size	157(L)105(W)120(H)mm
Giftbox Size	188(L)109(W)58(H)mm
Accessories	1User Manual，1Adaptor, 1HDMI cable, 1RCU

Frequently Asked Questions

The minimum quantity is 1000pcs.
The most cost-effective MOQ is 3000pcs, because this quantity reduces the break bulk distribution cost in comparison with the Qty of 1000pcs.

Quality:
Quality is our culture, every product from us has to go through at least 9 times of inspection before being offered to you. These inspections are incoming inspection, QA inspection, assembly line online test, patrol inspection, dust removal test, aging test, FQC test, enhanced dust removal test, and Package inspection. All products are 100% tested and approved.

Warranty:
DataMax with a 1 year warranty for the whole device.
We provide 0.3%~1% spare parts for after-sales service on the client’s side.

We usually give you a quotation within 48 hours after getting your inquiry during the workday.
If you are in a hurry to inquire, please contact us by Email/Teams/WhatsApp/WeChat/Phone directly. You can find all our sales contact information on every page.

Samples order is highly welcome for quality evaluation if needed. We have stock that we can ship you immediately, it takes 7-15 days to reach you.

For the new order, it usually takes 30-35 days for production.
For the duplicated order, 15-21 days would complete the production.

For the artwork, you can customize the giftbox, logo on device or RCU, bottom sticker, carton box.
For the software, you can redefine the model number, language & timezone by default, pre-installed apps, launcher replacement(if it’s necessary)

Yes, we can. DataMax is a leading national high-tech enterprise and a 12-year ODM/OEM manufacturer in the industry of Android-based products. Our rich R&D experiences over a decade have shaped us into a great product maker with a deep understanding of the product definition and problem solver when after-sales issues occur.

We usually ship orders according to customers’ demand. If customers don’t have the shipment channels, we will use our reliable shipping agent who has been cooperating with us for over 10 years. The shipping period depends on the shipping methods. Welcome to inquire with us for more about this.

We have refund policy for every projector:
1) If the product is damaged due to external forces or human factors, we will not be responsible for refunds.
2) We guarantee 100% replacement for the extra faulty devices if the defective quantity exceeds the spare parts we provided.

If you have questions about after-sales service, please contact us anytime.

We usually accept T/T for bank transfer, 30% deposits before mass production, 70% balance payment before the order shipment.
